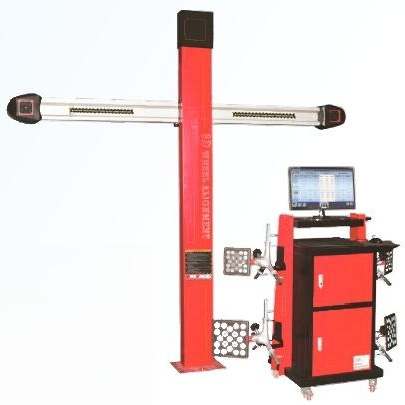

3DWheel Alignment
Description
Measurement functions:four wheel alignment,two wheel alignment,single wheel measurement,lift measurement, camber ,caster,KPI,toe,Setback,thrust angle,straighten steering wheel,toe lock adjustment,toe curve adjustment, max.turning angle measurement,axis offset measurement, wheel offset measurement
| Measurement ltems | Toe | Camber | Caster | KPI | Setback |
Thrust Angle |
Wheel base | Tread |
| Accuracy | ±2' | ±3' | ±3' | ±3' | ±2' | ±2' | ±3′ | ±5mm |
| Measurement Range | ±20° | ±10° | ±20° | ±20° | ±9° | ±9° | / |

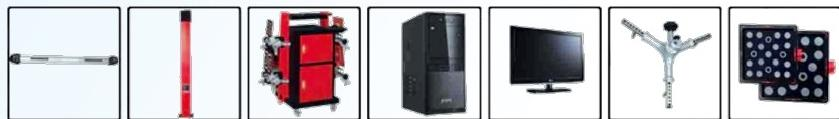

Standard Accessory:
1X camera beam 1X cabinet 1X PC LCmonitor 4Xclamps 4Xtargets
| Camber | Accuracy±0.02°Measurement Range±10° |
| Caster | Accuracy±0.05°Measurement Range±10° |
| Kingpin Inclination | Accuracy±0.02°Measurement Range±20° |
| Toe | Accuracy±0.02°Measurement Range±2.4° |
| Thrust Angle | Accuracy±0.02°Measurement Range±2° |
| Maximum Steering Angle | Accuracy±0.08°Measurement Range±25° |
| Rear Axle Deviation | Accuracy±0.02°Measurement Range±2° |
| Track Difference | Accuracy±0.03°Measurement Range±2° |
| Front Splay Angle | Accuracy±0.02°Measurement Range±2° |
| Rear Splay Angle | Accuracy±0.02°Measurement Range±2° |
| Track Width | Accuracy ±0.64cm(±0.25cm)Measurement Range<265cm(<105in) |
| Wheelbase | Accuracy±0.64cm(±0.25cm)Measurement Range<533cm(<210in) |
