Brake Drum/Disc Cutting Machine
Description
This equipment is a kind of lathe.It can fulfill the reparation of the brake drum,disc and shoe of quto- mobiles from mini-car to heavy trucks.The unusual feature of this equipment is its twin spindle each other perpendicular structure.The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.This equipment has higher rigidity,accurate workpiece positioning and is easy to
operate.
| Parameter | |

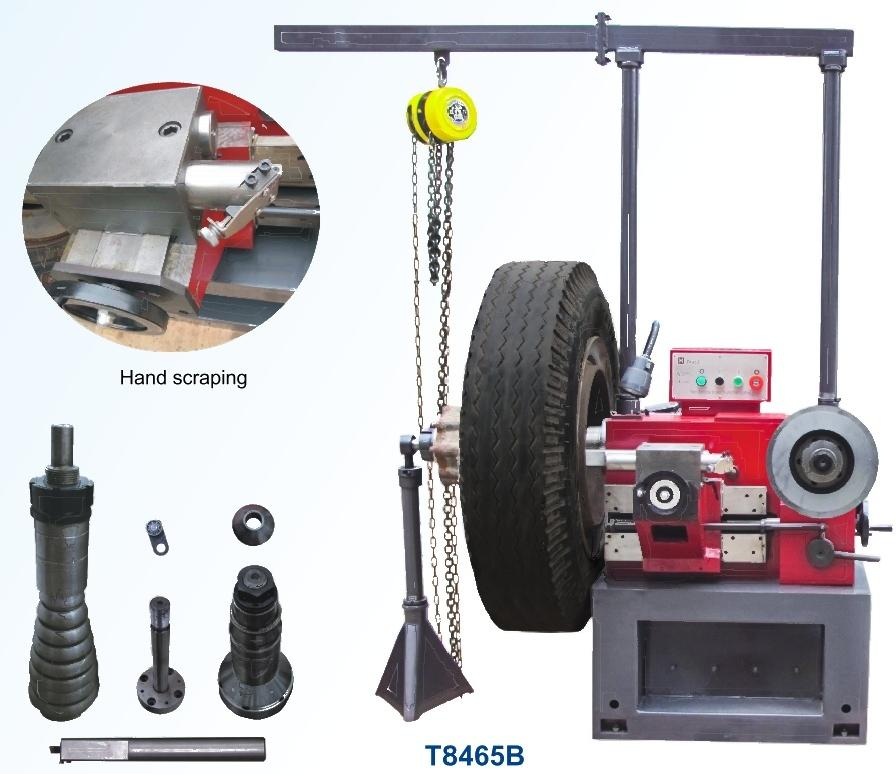

| Model | T8465B |
| Drum dia capacity | 180-650 mm |
| Disc dia capacity | ≤500 mm |
| Spindle speed (three grades) | 30/52/85rpm |
| Tool post travel | 250 mm |
| Feed rate | 0.16 mm/r |
| Motor | 1.1/1400 kw/rpm |
| Dimension | 800×875x940 mm |
| Net weight | 400 kg |
Description
| Parameter | |

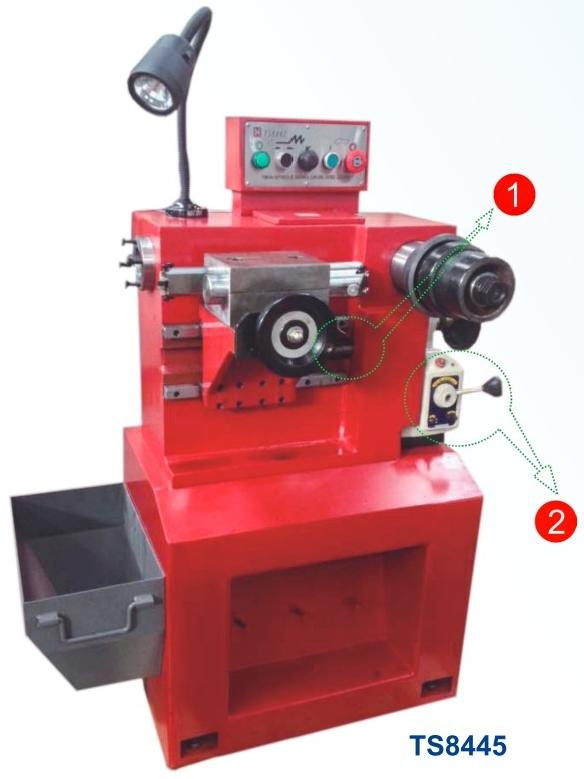

| Model | TS8445 |
| Drum dia capacity | 180-450 mm |
| Disc dia capacity | ≤400 mm |
| Spindle speed (three grades) | 30,50,85 r/min |
| Tool post travel | 170 mm |
| Feed rate | 0-0.5 mm/min |
| Motor | 1.1/1400 kw/rpm |
| Dimension | 820×1080x1280 mm |
| Net weight | 320 kg |

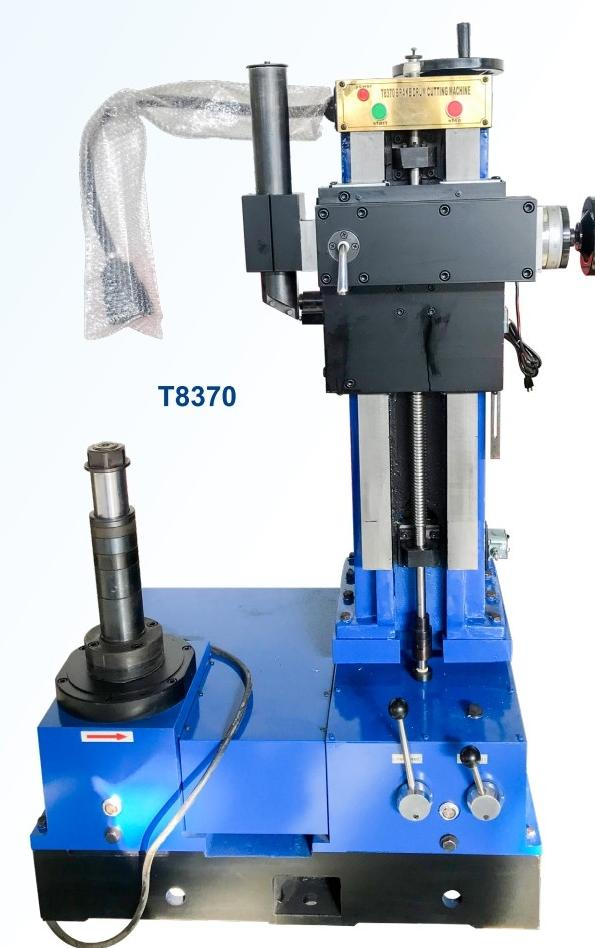

Description
● The machine can achieve stepless speed regulating from 30-125RPM.
● The spindle is used with advanced variable frequency and adjustable speed.
● The operation,stop and speed change of the spindle is completely controlled by computer.
●It is very convenient for set up of brake drum without wheel hub.
| Parameter | |||
|
Spindle Speed |
30-125RPM | Maximum Feed | Fast 0.3mm/rev Slow 0.2mm/rev |
|
Drum Diameter |
8-25.6"(220-650mm) | Maximum Feed Depth | 1mm |
| Drum Depth | 8"(320mm) | Motor | 220V/380V,50/60Hz,2.2kw |
