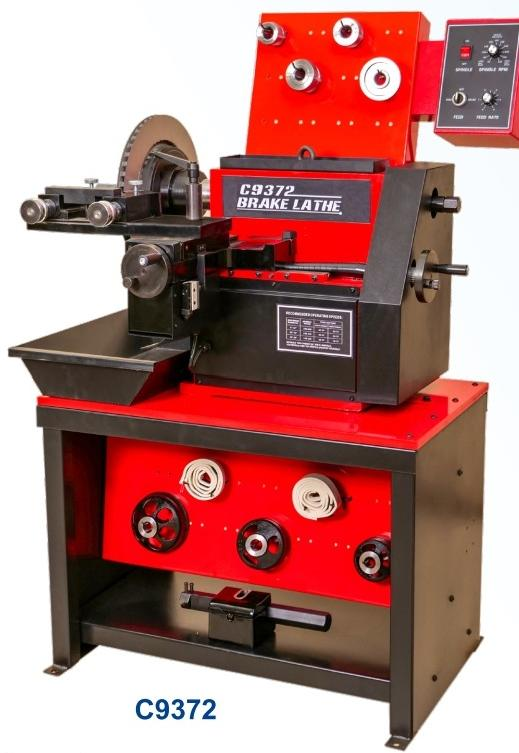

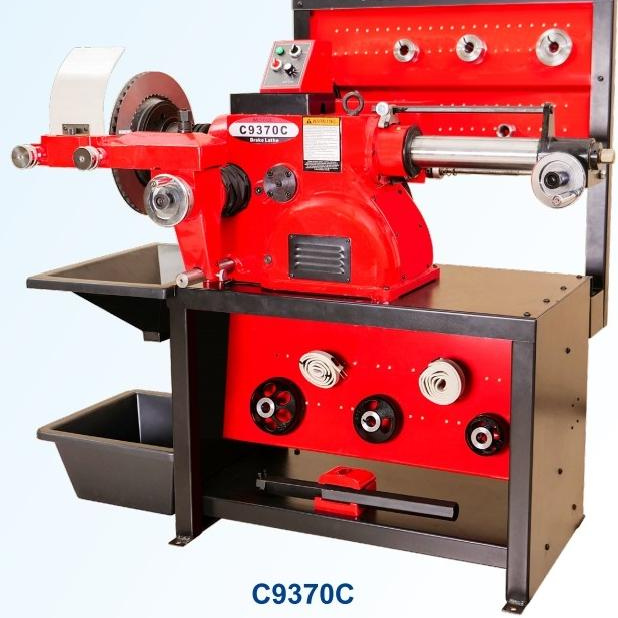

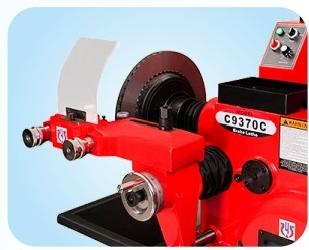

Brake Lathe
Description
● DC motors designed to meet the demanding requirement of industrial motion control.

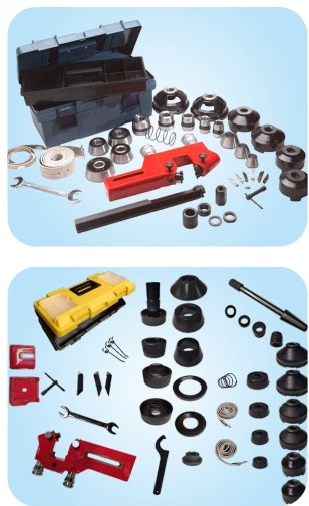

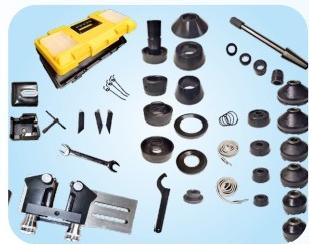

●“Change Adapter”system to eliminate the need for conventional bell clamps and cones.

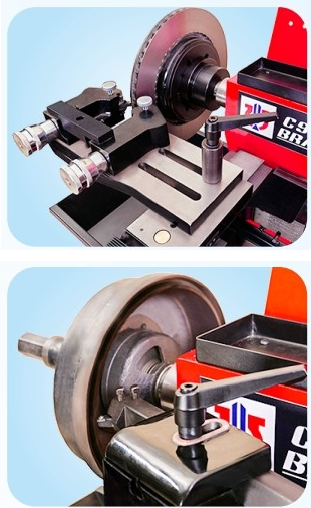

● The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.
● Infinitely variable spindle and cross feed speed settings for quick rough and precision finish cuts.
● Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast.
| Parameter | |||
| Spindle Travel | 9.875”(251mm) | Spindle Speed | 70,88,118 rpm |
| Spindle Feed Speed | 0.002”(0.05mm)-0.02” (0.5mm)Rev | Cross Feed Speed | 0.002”(0.05mm)-0.01” (0.25mm)Rev |
|
Handwheel Graduations |
0.002”(0.05mm) | Disc Diameter | 7"-18"(180-457mm) |
| Disc Thickness | 2.85”(73mm) | Drum Diameter | 6“-17.7”(152-450mm) |
| Drum Depth | 9.875”(251mm) | Motor | 110V/220V/380V 50/60Hz |
| Gross Weight | 325KG | Dimension | 1130×1030×1150 mm |
Description

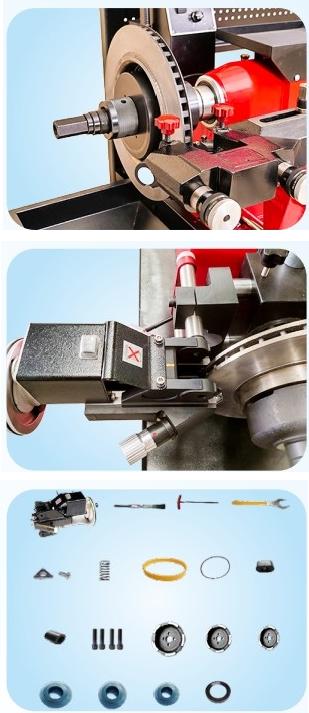

● High Efficiency--A convenient design allows to quickly change from disc to drum.
●Perfect Finish--The perfect finish meets or exceeds all OEM specifications.
● Simple Convenience---A tool tray and tool board means you can easy to take tools?and adapters.
● Infinitely Speed--Variable spindle speed and cross feed speed provide a perfect finish.
●Single Pass--Positive rate toling foroptimum finish with a single pass.
| Parameter | |||
|
Feed rates-Disc and Drum |
0”-0.026”(0mm- 0.66mm)/ | Spindle Speed | 70-320RPM |
| Feed Rates Per Minute | 2.54”(64.5mm) | SpindleWeight
Capacity(Standard 1”Arbor) |
1501bs(68Kg) |
| Flywheel Diameter |
6”-24”(152-610mm) |
Disc Diameter | 4”-20”(102-508mm) |
| Maximum Disc Thickness | 2.85”(73mm) | Drum Diameter | 6"-19.5"(152-500mm) |
| Drum Depth | 6.5”(165mm) | Motor | 110V/220V 50/60HZ |
| Gross Weight | 300KG | Dimension | 1100×730×720mm |
Description

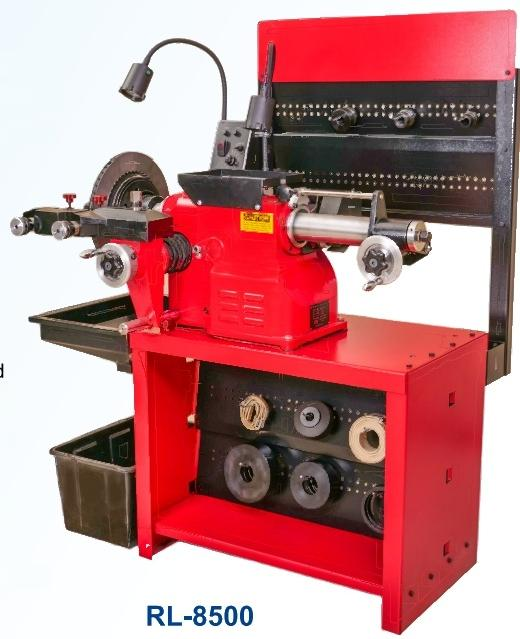

●In contrast to mechanically-driven transmission and gear boxes,the RL-8500 uses precision electric DC servo motors designed to meet the demanding
requirements of industrial motion control.

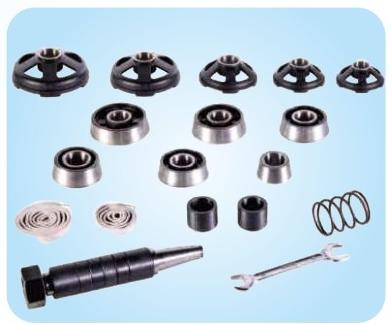

●Works on all cars or trucks,both foreign and domestic,with hubless drums, discs (center hole sized 2-5/32"-4")and composite discs(center hole sized 4"- 6-1/4").
●Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts.Legendary control makes unit easy to learn and master.
●Massive tapered spindle bearings offer superior weight support during rotation.
●Easily change arbor speeds in seconds:choose
150 or 200 rpm depending on the job.
| Parameter | |
| Overall Height-Mounted On Bench: | 62/1575 mm. |
| Foor Space Needed--Width: | 49"/1245 mm. |
| Floor Space Requirements -Depth | 36"/914 mm. |
| Spindle To Floor -MountedOn Bench: | 39-1/2"/1003 mm. |
| Electrical Requirements Standard: | 115/230 VAC,50/60 H4z,Single-Phase,20 Amps |
| Spindle Speed-Inner Groove: | 150 RPM |
| Spindle Speed -Outer Groove: | 200 RIPM |
| Cross Feed Speed: | Infinitly Variable /0-.010"Per Revolution (0-0.25 Mm/Rev) |
| Spindle Feed Speed: | Infinitly Variable /0-.020"Per Revolution (0-0.55 Mm/Rev) |
| Spindle Travel: | 6-7/8"/175 mm. |
| Maximum Brake Disc Diameter: | 17"/432 mm. |
| Maximum Brake Disc Thickness: | 2-1/2"/63.5 mm |
| Brake Drum Diameter: | 6"-28"/152 mm.-711 mm. |
| Maximum Load-With Standard 1"Arbor: | 150Lbs./68Kg |
| Maximum Load-With Optional 1-7/8"Truck Arbor | 250 Lbs.113Kg |
| Shipping Weight-With Bench&Standard Tools | 685 Lbs./310kg. |
Description

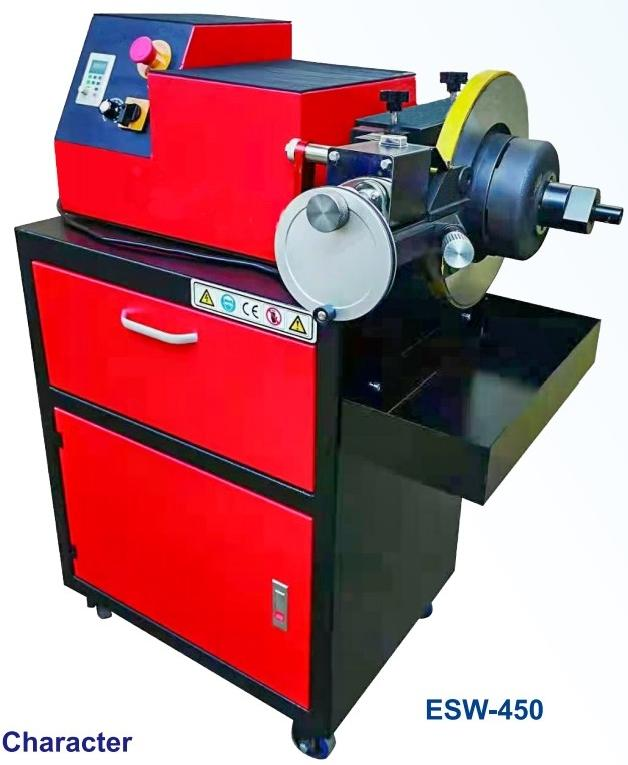

●ESW-450 adopts the high precision of DC reduction motor and will meet the demanding requirement of industrial motion.

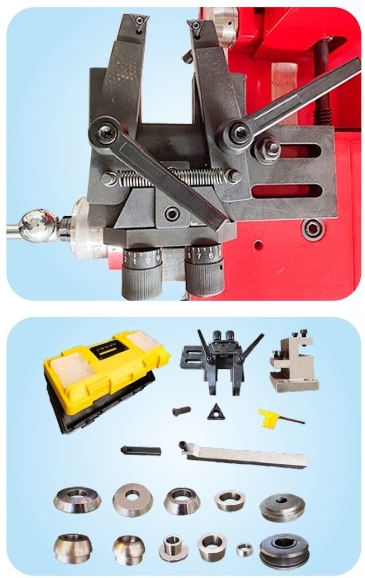

● The machine is equipped with a twin cutter,which will achieve the simultaneously cutting both sides of the disc and increase the cutting efficiency.
● The machine is equipped with a big storage cabinet,for the customers to put tools.
● The machine has small size and solid structure,covering less space.
● The mahine is equipped with the omni-directional wheels to move freely.
● Two dismountable triangle carbide cutting tips can repair more than 50 discs for customers.
| Parameter | |||
| Model | ESW-450 | Motor | 110v/220y 50/60Hz |
|
Disc biggestDiameter |
500mm | Reduction Motor Power | 400W |
|
Disc biggest Thickness |
40mm | Spindle Revolution | 0-200RPM |
| Disc Precision | ≤0.01mm | Working Temperature | -20℃-40℃ |
| Desk Height | 1200mm | Weight | 138kg |
Description

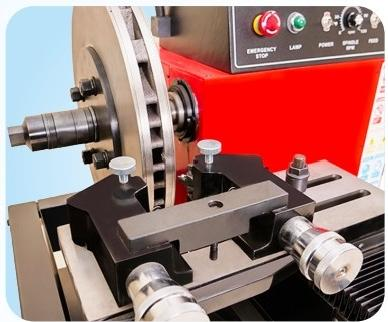

● The machine is suitable for all kinds of vehicles,including buses,trucks,SUVs and so on.
●The machine is equipped with a 1.5KW conversion motor.
● Two working lamps will keep the work area lighted even in dark places.
● The workbench will reduce the vibration and chattering.
● The special holder and blade ensure the perfect finish.
● Variable spindle speed and feed speed provide the high efficiency.
| Parameter | |||

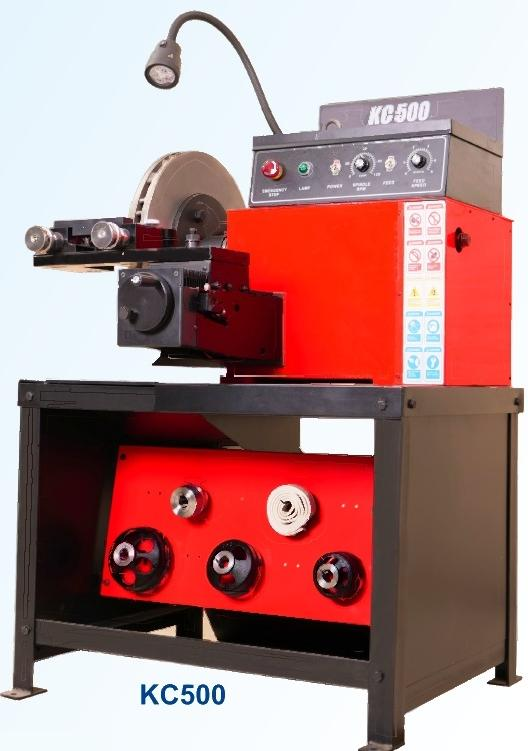

| Model | KC500 | Motor | 220V/380V,50/60Hz,1.5kw |
| Spindle Speed | 0-120RPM | Feed Speed | 0-1.84"(0-46.8mm)/min |
| Disc Travel | 5.12"(130mm) | Max Cutting Depth | 0.023"(0.6mm) |
| Disc Diameter | 9.45“-19.02”(240-483mm) | Disc Thickness | 2"(50mm) |
| Gross Weight | 300KG | Dimension | 1130×1030×1300mm |
Description

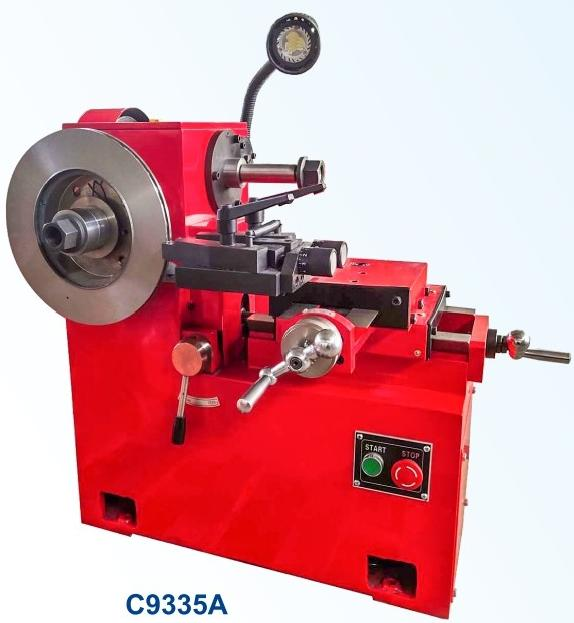

● C9335A adopts the powerful AC motor of 1.1Kw,which can meet the demanding requirement of industrial motion.
● Independent operation of cutting disc and drum.
● It has two grades of revolution speeds to choose,which will meet the needs of cutting discs and drums of different diameters.
● Specially-designed taper cones for both discs and drums,which will ensure the cutting precision.
● The machine is equipped with a twin cutter,which willachieve simultaneously cutting both sides of the disc and increase the cutting efficiency.
● The machine has the cast iron body of small size and solid structure,covering less space.
● The simple ergonomic controls are designed for minimal operator movement,reducing the operation and easy to learn.
● The machine is equipped with lighting and ensure the working area well-lighted.
● The machine is equipped with a limit switch.The machine will stop automatically when the slide carriage touches the limit switch during auto-running.
● The electrical device adopts the products of Delixi brand and ensures the product quality.
| Parameter | |||
| Model | C9335A | Motor | 110V/220V/380V 50/60Hz |
| Disc Diameter | 180mm-450mm | Power | 1.1kw |
| Drum Diameter | 180mm-350mm |
Spindle Revolution |
75,130rpm |
|
Biggest Travel |
100mm | Total Weight | 260KG |
| Feeding | 0.16mm/r | Dimensions | 850*620*750mm |
