On The Car Brake Disc Lathe

Short Description:

Description ● Basing on the actual axis of rotation,completely solve the problem of brake pedal dithering,brakedisc rust, brake deviation and brake noise. ●Eliminate the assembly error when disassembling and assembling the brake disc. ●On the car repair without the need of disassembling the brake disc,save labor and time. ●Convenient for the technicians to compare the run-out tolerance before and after cutting brake disc. ·Save cost,powerfully shorten the repair time,and redu...

Send email to us

Product Detail

Product Tags

Description

● Basing on the actual axis of rotation,completely solve the problem of brake pedal dithering,brakedisc rust, brake deviation and brake noise.

●Eliminate the assembly error when disassembling and assembling the brake disc.

●On the car repair without the need of disassembling the brake disc,save labor and time.

●Convenient for the technicians to compare the run-out tolerance before and after cutting brake disc.

·Save cost,powerfully shorten the repair time,and reduce client's complaint.

● Cut the brake disc when replacing the brake pads, assure the brake effect,and prolong the service life of brake disc and brake pads.

Parameter

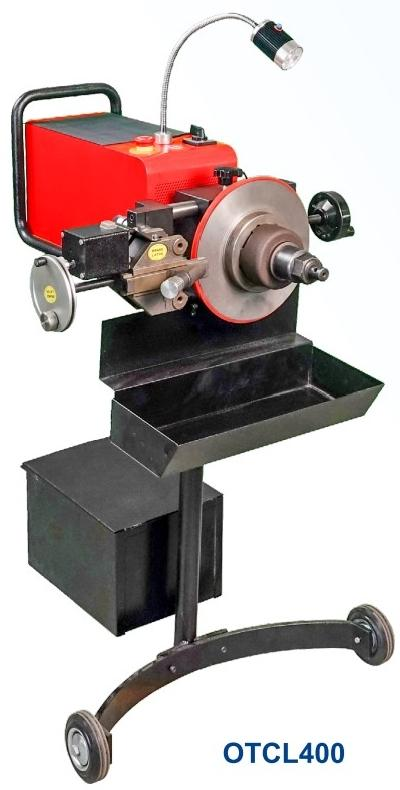

Model	OTCL400	Maximum Diameter Of Brake Disc	400mm
Working Height Min/Max	1000/1250mm	Drive Speed	98RPM
Motor Power	750W	Electrical Specifications	220V/50Hz 110V/60Hz
Thickness Of Brake Disc	6-40mm	Cutting Depth Per Knob	0.005-0.015mm
Cutting Precision	≤0.00-0.003mm	Brake Disc Surface Roughness Ra	1.5-2.0μm
Gross Weight	75KG	Dimension	1100×530×340mm
