Powder Coating Machine

Short Description:

Description PCM100     PCM200 Three Pre-set application Programs:1.The Flat Rarts Program:is ideal for the coating of panels and flat parts 2.The  complex  parts  program  is  designed  for  the  coating  of  three  dimensional  parts  with  complex  shapes such as profiles.3.The recoat program parts is optimized for the re-coating of parts which have already been coated. 100  kv  powder  spray  gun  maximizes  powder  charging  capacity,and  always  maintains  highest  transfer ef...

Product Detail

Product Tags

Description

45

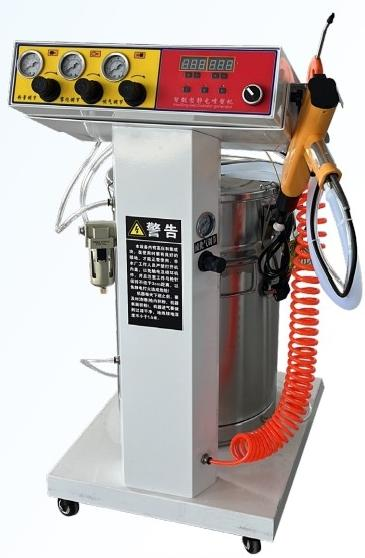

PCM100

44

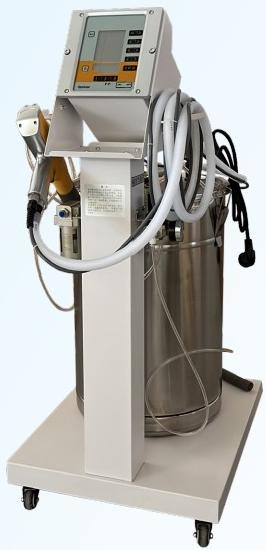

    PCM200

Three Pre-set application Programs:1.The Flat Rarts Program:is ideal for the coating of panels and flat parts 2.The  complex  parts  program  is  designed  for  the  coating  of  three  dimensional  parts  with  complex  shapes such as profiles.3.The recoat program parts is optimized for the re-coating of parts which have already been coated.

100  kv  powder  spray  gun  maximizes  powder  charging  capacity,and  always  maintains  highest  transfer efficiency  even  after  long  High  quality  cascade  design,while  better  exerting  electrical  performance,extends the service life of the product.



Parameter
Model PCM100 PCM200
Voltage 100~240VAC 220VAC
Max Output Voltage 100KV 100KV
Max Output Current 100μA 100μA
Input Pressure 0.8MPa(5.5bar) 0.8MPa(5.5bar)
Safety Level IP54 IP54
Max Powder Output 650g/Min 650g/Min
Input Voltage Of Spraying Gun 12V 12V
Frequency 50-60hz 50-60hz
Solenoid Valve Control Voltage 24V DC 24V DC
Packing Weight 40KG 40KG
Cable Length 4m 4m
