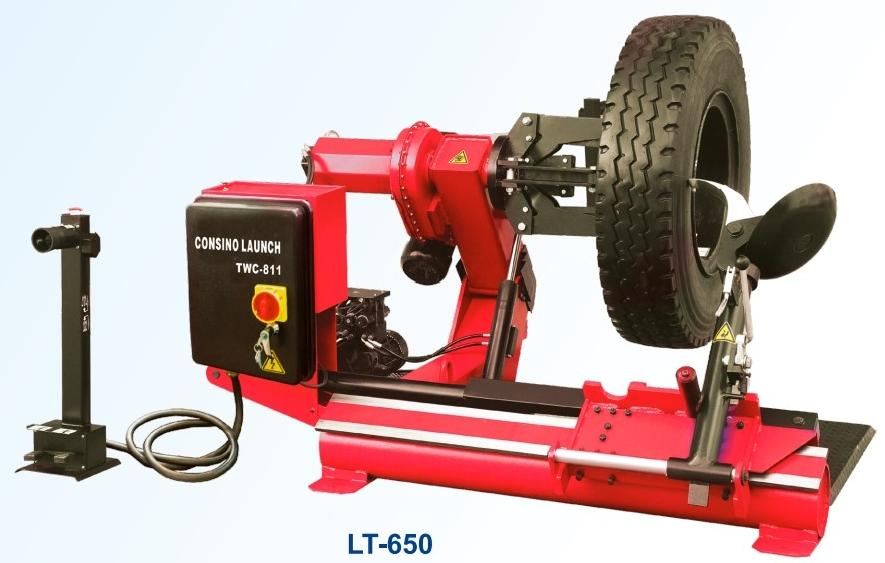

Truck Tyre Changer
Feature
● Handles rim diameter from 14"up to 56"
● Suitable for various tres of large vehicle,applicable to tyres with gripping rily,radial ply tires,farm vehicle,passenger car,and engineering machine.etc
● Semi-automatic assist arm mounts/demounts the tyre more conveniently.multi-type wheels more conveniently.
●Accuracy of the cojoined claw is higher.
● Mobile Control unit 24V.
● Optional colours:
| Parameter | |
| Rim Diameter | 14”-56” |
| Max wheel diameter | 2300MM |
| Max.Wheel Width | 1065mm |
| Max.Lifting Wheel Weight | 1600kg |
| Hydraulic Pump Mortor | 2.2KW380V3PH (220V Optional) |
| Gearbox motor | 2.2KW380V3PH (220V Optional) |
| Noise level | <75dB |
| Net Weight | 887KG |
| GrossWeight | 1150KG |
| Packing Dimension | 2030*1580*1000 |
● Handles rim diameter from 14"up to 26"
·Suitable for various tires of large vehicle,applicable to tyres with gripping rily,radial ply tires,farm vehicle,passenger car and engineering machine
●semi-automatic assist arm mounts/demounts the tyre more conveniently
● The modern wireless remote-control makes the operation much more conveniently (optional). ●Low voltage 24V remote control for safty and versatility
●accuracy of the cojoined claw is higher
● mobile command unit 24V
● optional colors
| Parameter | |
| Rim Diameter | 14“-26” |
| Max wheel diameter | 1600MM |
| Max.Wheel Width | 780MM |
| Max.Lifting Wheel Weight | 500kg |
| Hydraulic Pump Mortor | 1.5KW380V3PH (220V Optional) |
| Gearbox motor | 2.2KW380V3PH (220V Optional) |
| Noise level | <75dB |
| Net Weight | 517KG |
| Gross Weight | 633KG |
| Packing Dimension | 2030*1580*1000 |
Character
● Handles rim diameter from 14"up to 26"(Max.working diameter 1300mm)
● Suitable for various tires of large vehicle,applicable to tyres with gripping ring,radial ply tires,
farm vehicle,passenger car,and engineering machine … …etc.
●It can save human resource,work
time and energy with high ,efficiency.
● No need to strike the tyres with big
hammers,no damage to wheel and rim.
● Really an ideal choice for tyre
repairing &maintenance equipment.
● Full-automatic mechanical arm
enables the work easy and relaxing.
●Foot brake make it to easy operation.
● Optional chuck for more large tyres.

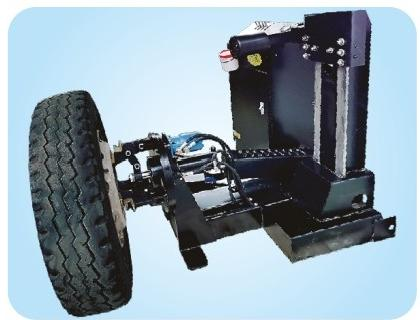

Easy to load and unload tires

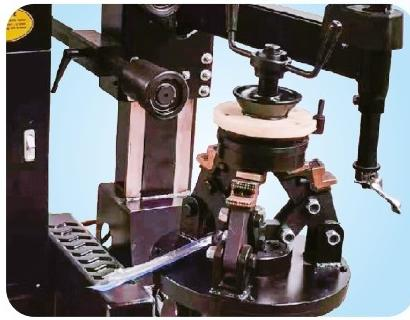

Fixture for car(Optional)
| Model | Application range | Max.wheel weight | Max.wheel width |
Max.diameter oftyre |
Clamping range |
| VTC570 |
Truck,Bus,Tractor,Car |
500Kg | 780mm | 1600mm | 14"-26"(355-660mm) |
