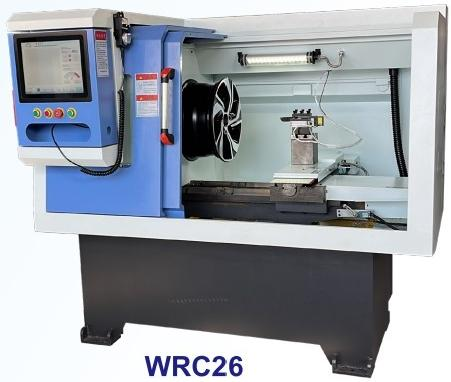

WRC26
Description
●The system is free of programming and has fast work efficiency.It can automatically detect the shape of the hub,collect data,generate processing programs,and automatically cycle cutting.
●Advanced intelligence can meet the diverse shapes of hubs on the market,and the system is continuously upgraded,and there is no dead angle for detection and processing,such as high edge steps,double steps,and special-shaped hubs can be processed.
● The system has a remote service function,which can upgrade and update the user's machine,teaching and training,after-sales service and other functions.
| ITM | UNIT | WRC26 | |
| Machine
processing capacity |
Max.swing over bed | mm | 700 |
| X/Z axis Travel | mm | 360/550 | |
| X/Z axis feed | mm/min | 1000/1000 | |
| Wheel work range | Wheel holding diameter | inch | 26 |
| Wheel height range | mm | 700 | |
| Chuck | Chuck size | mm | 260 |
| Number of chuck jaws | 3/4/6 | ||
| Spindle speed | Lathe speed | rpm/min | 50-1000 |
| Cut wheel work speed | 300-800 | ||
| Detection tools | Laser/TP300 Probe | ||
| Guide rail from | Hard rail | ||
| Lathe structure | Horizontal | ||
| System | 6Ta-E/YZCNC(Automatic programming,touch screen opetation 17 screen lcd didplay | ||
| Tool cattier | Number | 4 | |
|
Accuracy |
Positoning accuracy | mm | 0.01 |
| Repeatability
Positioning accuracy |
mm | 0.01 | |
| Tool carrier repeatability positoning accuracy | mm | ±0.07 | |
| Motor power | Main motor | Kw | 3 |
| XZ feed torgue | N/m | 6/10 | |
| Cooling |
Water cooling/Air cooling/Highh pressure spray cooling |
||
| Voltage | Single 220v/3 Phase 220V/3 Phase 380V | ||
| Machine size | mm | 1800×1550×1800 | |
| Machine weight | t | 1.1 | |
