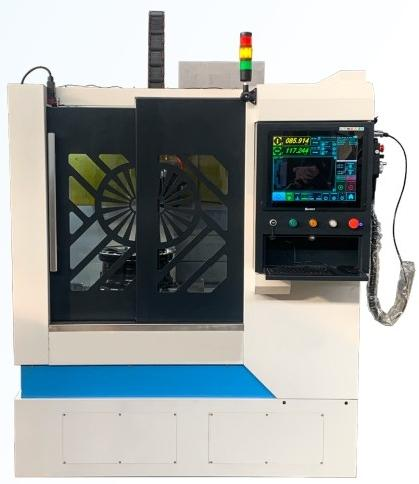

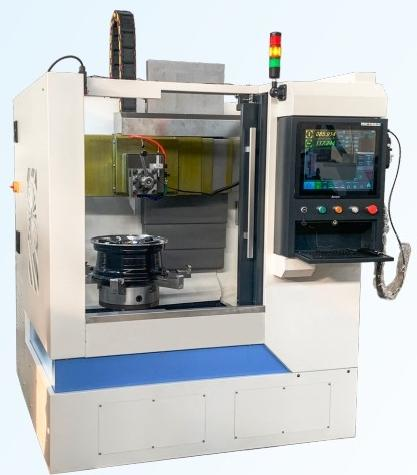

Vertical Wheel Repair Lathe WRC32 V
Description
WRC32 V
| ITM | UNIT | WRC32 V | |
| Machine
processing capacity |
Max.swing over bed | mm | 870 |
| X/Z axis Travel | mm | 450/550 | |
| X/Z axis feed | mm/min | 5000/10000 | |
| Wheel work
range |
Wheel holding diameter | inch | 32 |
| Wheel height range | mm | 80-500 | |
| Chuck | Chuck size | mm | 320 |
| Number ofchuck jaws | 3/4/6 | ||
| Spindle
speed |
Lathe speed | rpm/min | 100-1500 |
| Cut wheel work speed | 300-800 | ||
| Detection tools | TP300 Probe | ||
| Guide rail from | Liner guildeway | ||
| Lathe structure | Vertical | ||
| System | 6Ta-E/YZCNC(Automatic programming,touch screen opetation 17 screen Icd didplay | ||
| Tool cattier | Number | 4 | |
|
Accuracy |
Positoning accuracy | mm | 0.1 |
| Repeatability
Positioning accuracy |
mm | 0.005 | |
| Tool carrier
repeatability positoning accuracy |
mm | ±0.07 | |
| Motor power | Main motor | Kw | 5.5 |
| XZ feed torgue | N/m | 6/10 | |
| Cooling | Water cooling/Air cooling/Highh pressurespray cooling | ||
| Voltage | Single 220v/3 Phase 220V/3 Phase 380V | ||
| Machine size | mm | 1700×1500×2250 | |
| Machine weight | t | 1.7 | |
