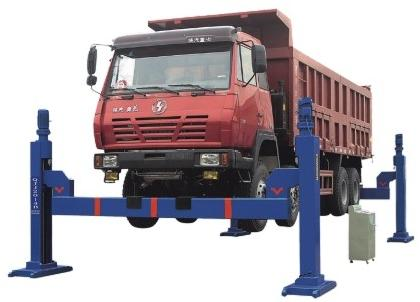

Fout Post Lifter
Description
●Large loading capacity
●Adjustable runway,easy operation
● Merchant steel for post orbital ,move more smoothly.
● Built-in lift,large bearing capacity
● The planet cycloidal needle wheel deceleration, screw rotation,nut drive lifting beam up and down.
●Personalized design,reasonable and aesthetic.
| Parameter | |||
| Model | QJJ20-4B | QJJ30-4B | QJJ40-4B |
| Capacity | 20t | 30t | 40t |
| Lifting Height | 1700mm | 1700mm | 1700mm |
| Effective Span | 3200mm | 3200mm | 3200mm |
| Motor Power | 2.2x4 kw | 3x4 kw | 3x4 kw |
| Input Voltage | 380V | 380V | 380V |
| Weight | 2.1t | 2.6t | 3.0t |

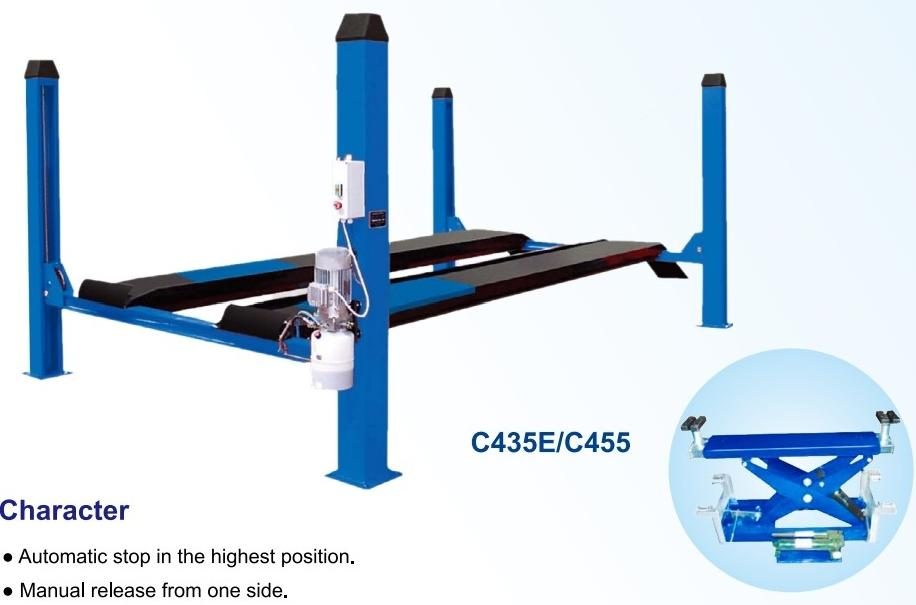

Feature
●Mechanical safety latch in four columns'back.
●Adjustable distance between two platforms can be well applicable to vehicles of different width.
●Automatic stop in the highest position.
●Anti-surge valve that equipped in hydraulic joint ensures no danger in case of oil hose broken.
● Relief valve protect against overloading.
●Valid protection system for steel cable broken.
● Front wheel baffle,Antiskid pattern front Ramps.
●24V low-voltage safe control keeps customers away from unexpected injury.
| Parameter | ||
| Model No. | C435E | C455 |
| Lifting capacity | 4000kg | 5500kg |
| Min.height | 181mm | 219mm |
| Max.height | 1760mm | 1799mm |
| Overallheight | 2190mm | 2220mm |
| Overall width | 3420mm | 3420mm |
| Overall length | 5810mm | 5914mm |
| Rising time | ≤60s | ≤60s |
| Lowering time | >30s | >30s |
