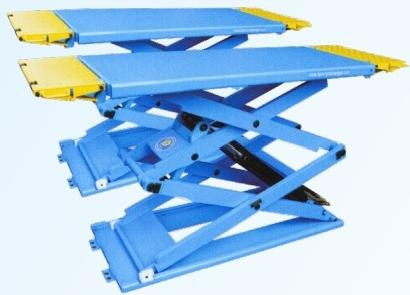

Scissor Lifter
Description
| Parameter | |
| Lifting capacity | 3000kg |
| Min.height | 115mm |
| Max.height | 1650mm |
|
Length of platform Width |
1560mm |
| of platform | 530mm |
| Overall length | 3350mm |
| Rising time | <75s |
| Lowering time | >30s |
● Driven by synchronization of four cylinders
● Mechanical protection with gear rack
●Pneumatic lock release when lowering
● Direct mounting on the ground,convenient for moving and dismounting
● High quality power unit with aluminium motor
●With 24V safe voltage control box

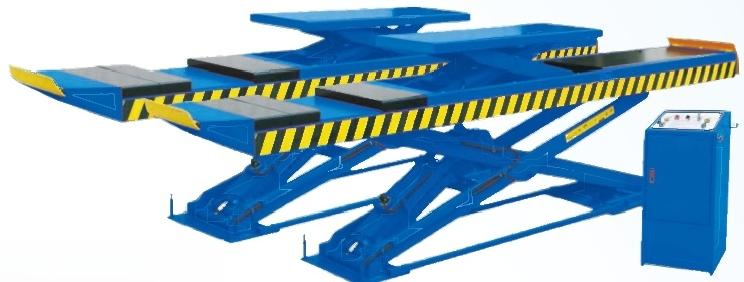

Description
| Parameter | |
| Lifting capacity | 3500kg |
| Lifting height | 2000mm+500mm |
| Min.height | 330mm |
| Length of platform 1 | 4500mm |
| Length of platform 2 | 1400mm |
| Width of platform 1 | 630mm |
| Width of platform 2 | 550mm |
| Overall width | 2040mm |
| Overall length | 4500mm |
● Driven by synchronization of double cylinders
●Mechanical protection with gear rack
●Pneumatic lock release when lowering
● In-ground installation,saving more space
● With secondary lifting platform
● High quality power unit with aluminum motor
●With 24V safe voltage control box
●Also applies to wheel alignment

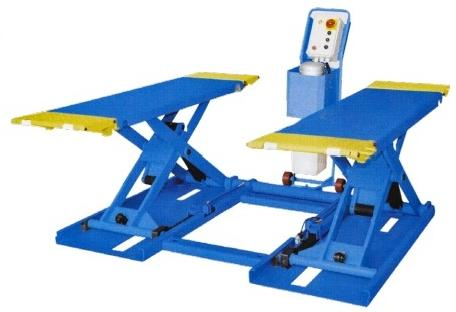

Feature
| Parameter | |
| Lifting Capacity | 3000kg |
| Max.Lifting Height | 1850mm |
| Min.Lifting Height | 105mm |
| Platform Length | 1435mm-2000mm |
| Platform Width | 540mm |
| Lifting Time | 35s |
| Lowering Time | 40s |
| Air Pressure | 6-8kg/cm3 |
| Supply Voltage | 220V/380V |
| Motor Power | 2.2Kw |
● Super thin structure hydraulic scissor lift,easy for ground installation,suitable for vehicles"lifting, detection,repair and maintenance.
● Equipped with 4 hydraulic cylinders,which is stable for rising and down.
●Using imported hydraulic,pneumatic and electric spare parts to make it more stable and reliable.

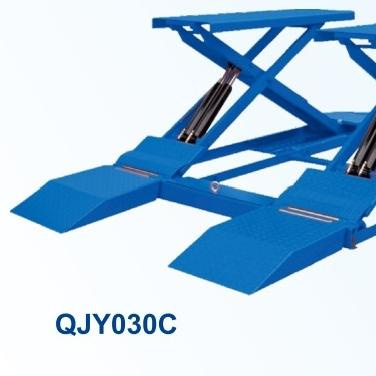

Feature
| Parameter | |
| Lifting Capacity | 3000kg |
| Max.Lifting Height | 1000mm |
| Min.Lifting Height | 105mm |
| Platform Length | 1419mm-1958mm |
| Platform Width | 485mm |
| Lifting Time | 35s |
| Lowering Time | 40s |
| Air Pressure | 6-8kg/cm3 |
| Supply Voltage | 220V/380V |
| Motor Power | 2.2Kw |
●Super thin structure hydraulic scissorlift,easy for ground installation,suitable for vehicles'lifting, detection,repair and maintenance.
●Using imported hydraulic,pneumatic and electric spare parts to make it more stable and reliable.
●Equipped with hoisting safety device to prolong the service life of hydraulic station and cylinder.
