Two Post Lifter

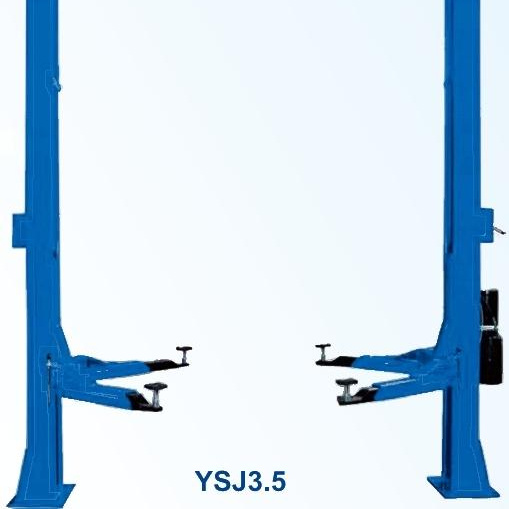

Description
● Single-point manual lock release
● High quality China-made power unit
● Driven by synchronization of double cylinders
● Rack type lifting arm self-locking structure
● Steel cable enables left and right synchronization ●With limit switch in the top position
| Parameter | |
| Lifting capacity | 3500kg |
| Min.height | 115mm |
| Max.height | 1850mm |
| Overall height | 3636mm |
| Width between columns | 2760mm |
| Overall width | 3384mm |
| Lifting time | ≤60s |
| Lowering time | >30s |

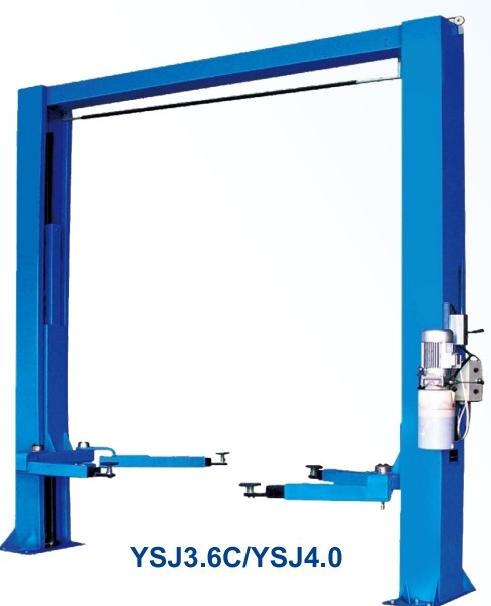

Description
● Single-point manual lock release
●High quality power unit with aluminium motor
● Driven by synchronization of double cylinders
● Steel cable enables left and right synchronization ●With limit switch in the top position
●24V safety voltage control box
| Parameter | |
| Lifting capacity | 3600kg/4000kg |
| Min.height | 100mm |
| Max.height | 1850mm |
| Overall height | 3612-3912mm |
| Width between columns | 2860mm |
| Overall width | 3470mm |
| Lifting time | ≤60s |
| Lowering time | >30s |

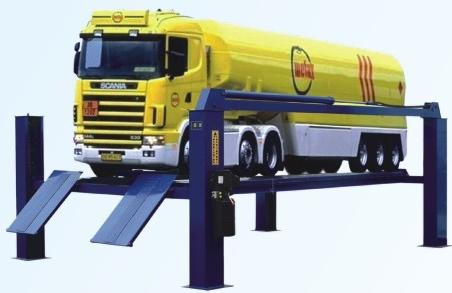

Description
● Electric-hydraulic drive
● Automatic safety locks,use more safety and
● Independent hydraulic cylinder ,no need routine maintenance,remove convenient,easy use.
● Mechanical process of post orbital at one time,
● high strength,can be used longer.
● Special chain drive mode,large anti-extension power,to make sure the safety of user and machine.
| Parameter | ||||
| Mode | QJY8-4B | QJY10-4B | QJY12-4B | QJY16-4B |
| Capacity Lifting | 8t | 10t | 12t | 16t |
| Height Effective | 1700mm | 1700mm | 1700mm | 1700mm |
| Span | 3230mm | 3230mm | 3230mm | 3230mm |
| Motor Power | 3kw | 3kw | 3kw | 4kw |
| Input Voltage | 380V | 380V | 380V | 380V |
| Size | 6860x3810x2410mm | 7300x3810x2410mm | ||
